umshini wokugaya ibhola weplanethi osebenzisa ikhompyutha
Izicelo

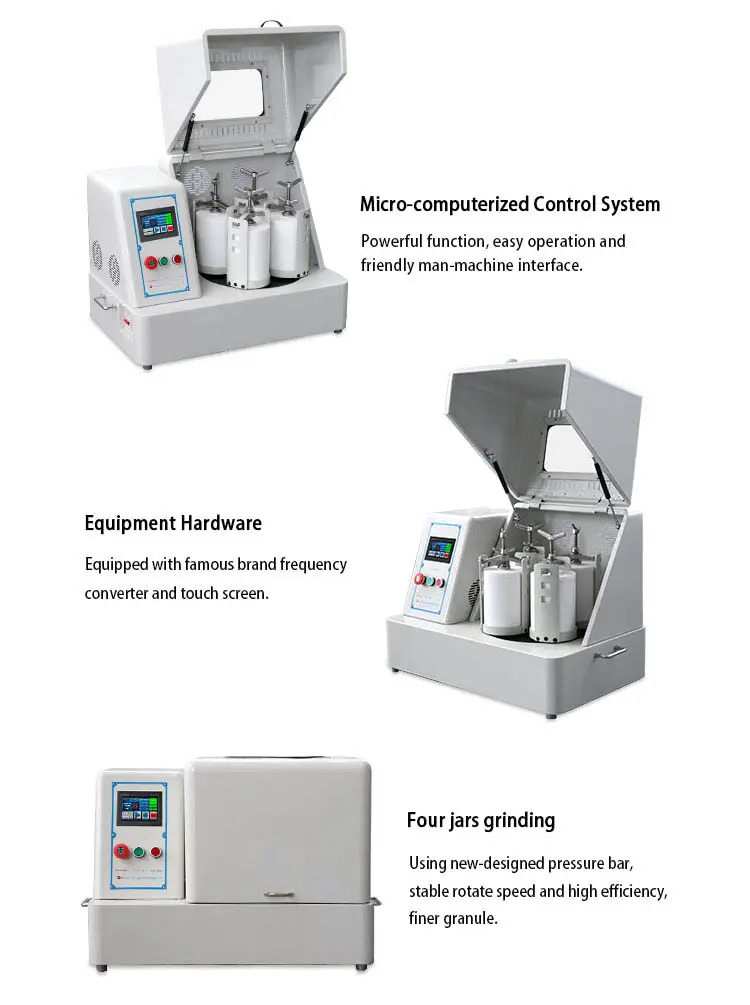

I-Micro-computer touch screen planetary ball mill yakhiwe yi-planetary ball mill evamile kanye nesistimu yokulawula ukusebenza kokuthinta, okuthuthukisa ukusebenza kwemishini. Lo mshini wanelisa kakhulu amakhasimende ngekhwalithi engcono kanye nokusebenza kahle. Usetshenziswa kabanzi kweze-geology, ezimayini, ezinsimbini, kuma-electronics, ezintweni zokwakha, ezintweni zobumba, kumakhemikhali, embonini yokukhanya, kwezokwelapha, ekuvikelweni kwemvelo nakweminye iminyango.
Uhlolojikelele
I-Micro-computer touch screen planetary ball mill yakhiwe yi-planetary ball mill evamile kanye nesistimu yokulawula ukusebenza kokuthinta, okuthuthukisa ukusebenza kwemishini. Lo mshini wanelisa kakhulu amakhasimende ngekhwalithi engcono kanye nokusebenza kahle. Usetshenziswa kabanzi kweze-geology, ezimayini, ezinsimbini, kuma-electronics, ezintweni zokwakha, ezintweni zobumba, kumakhemikhali, embonini yokukhanya, kwezokwelapha, ekuvikelweni kwemvelo nakweminye iminyango.
Ukusebenza Isimiso
I-Planetary ball mill inamathangi amane okugaya amabhola afakwe ku-turntable eyodwa. Lapho i-turntable ijikeleza, i-axis yethangi yenza ukunyakaza kwamaplanethi kanti amabhola asemathangini ayagaya futhi axube amasampula ngokunyakaza kwesivinini esikhulu. Umkhiqizo ungaphula futhi uhlanganise imikhiqizo ehlukahlukene yezinto ezahlukene kanye nobuningi ngezindlela ezomile noma ezimanzi. Ubuningi obuncane bemikhiqizo enhlabathini bungaba buncane njengo-0.1 mm.
Isici/Inzuzo
1. Umsebenzi oqinile wohlelo lokulawula.
2. Inikezwe imisebenzi eminingi efana nokusetha iphasiwedi, ukuhlela ngokukhululekile, ukugcina nokudlulisa izinhlelo eziningi, ukuqapha inqubo kanye nesexwayiso sokwehluleka.
3. Ukusebenza kokuthinta okubonakalayo, ukwakheka okulula nokwenziwe ngabantu.
Ishidi le-data
| Izici Zobuchwepheshe Zomshini Webhola Weplanethi Ovundlile | |
| Imodi-Drive | I-gear drive kanye ne-belt drive |
| Imodi yokusebenza | Amabhodlela okugaya amabili noma amane asebenza ndawonye |
| Ubukhulu bokulayisha Amandla | 2/3 womthamo wembiza yokugaya |
| Usayizi Wokondla | Izinto zomhlabathi≤10mm, ezinye izinto≤3mm |
| Ubuningi bokukhipha | I-granule encane kakhulu ifinyelela ku-0.1 μm |
| Isilinganiso Sesivinini Esijikelezayo | 1/2 |
| Isikhathi Esiphezulu Sokusebenza Esiqhubekayo | 72hours |
| Izindlela Zokulawula Isivinini Ongazikhetha | I-frequency conveter kanye nokulawula isikhathi okuzenzakalelayo |
| Izinto zeJar | Insimbi engagqwali, i-agate, i-nylon, i-corundum, i-zirconia, njll. |
| Amapharamitha Ayinhloko E-Computerized Planetary Ball Mill | |||||||
| Model No. | Power (kw) | voltage | Dimension (Mm) | Isivinini Sokuvukela Umbuso (rpm) | Ijubane Lokujikeleza (rpm) | Isikhathi Esiphelele (imizuzu) | Ukugijima Okushintshanayo Isikhathi Sokuqhubekela Phambili & Ukujikeleza Kokubuyela Emuva (imizuzu) |
| I-XQM-2(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-4(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-6(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-8(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-10(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-12(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-20(T) | 4 | 380V-50Hz | 1200 * 750 * 920 | 25-215 | 50-430 | 1-9999 | 1-999 |
| I-XQM-40(T) | 5.5 | 380V-51Hz | 1400 * 850 * 1160 | 20-195 | 40-390 | 1-9999 | 1-999 |
| I-XQM-60(T) | 7.5 | 380V-52Hz | 1600 * 990 * 1250 | 27-174 | 40-260 | 1-9999 | 1-999 |
| I-XQM-100(T) | 11 | 380V-53Hz | 1750 * 1140 * 1330 | 27-160 | 40-240 | 1-9999 | 1-999 |
Isesekeli Esingasetshenziswa Kalula
| Izici Zobuchwepheshe Zomshini Webhola Weplanethi Ovundlile | |
| Imodi-Drive | I-gear drive kanye ne-belt drive |
| Imodi yokusebenza | Amabhodlela okugaya amabili noma amane asebenza ndawonye |
| Ubukhulu bokulayisha Amandla | 2/3 womthamo wembiza yokugaya |
| Usayizi Wokondla | Izinto zomhlabathi≤10mm, ezinye izinto≤3mm |
| Ubuningi bokukhipha | I-granule encane kakhulu ifinyelela ku-0.1 μm |
| Isilinganiso Sesivinini Esijikelezayo | 1/2 |
| Isikhathi Esiphezulu Sokusebenza Esiqhubekayo | 72hours |
| Izindlela Zokulawula Isivinini Ongazikhetha | I-frequency conveter kanye nokulawula isikhathi okuzenzakalelayo |
| Izinto zeJar | Insimbi engagqwali, i-agate, i-nylon, i-corundum, i-zirconia, njll. |
| Amapharamitha Ayinhloko E-Computerized Planetary Ball Mill | |||||||
| Model No. | Power (kw) | voltage | Dimension (Mm) | Isivinini Sokuvukela Umbuso (rpm) | Ijubane Lokujikeleza (rpm) | Isikhathi Esiphelele (imizuzu) | Ukugijima Okushintshanayo Isikhathi Sokuqhubekela Phambili & Ukujikeleza Kokubuyela Emuva (imizuzu) |
| I-XQM-2(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-4(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-6(T) | 0.75 | 220V-50Hz | 750 * 470 * 564 | 35-335 | 70-670 | 1-9999 | 1-999 |
| I-XQM-8(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-10(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-12(T) | 1.5 | 220V-50Hz | 900 * 600 * 640 | 35-290 | 70-580 | 1-9999 | 1-999 |
| I-XQM-20(T) | 4 | 380V-50Hz | 1200 * 750 * 920 | 25-215 | 50-430 | 1-9999 | 1-999 |
| I-XQM-40(T) | 5.5 | 380V-51Hz | 1400 * 850 * 1160 | 20-195 | 40-390 | 1-9999 | 1-999 |
| I-XQM-60(T) | 7.5 | 380V-52Hz | 1600 * 990 * 1250 | 27-174 | 40-260 | 1-9999 | 1-999 |
| I-XQM-100(T) | 11 | 380V-53Hz | 1750 * 1140 * 1330 | 27-160 | 40-240 | 1-9999 | 1-999 |
