Ividiyo
Uhlolojikelele
Ngokusekelwe kumshini wokugaya ibhola weplanethi oqonde phezulu, umshini wokugaya ibhola weplanethi oqonde nxazonke wengeza umsebenzi wokugumbuqela idiski yeplanethi. Ngenkathi amabhodi ediski yeplanethi kanye nemishini yokugaya enza ukunyakaza kweplanethi, angenza futhi ukugumbuqela okungu-360 degree endaweni ye-stereo ukuze kufezwe ukunyakaza okuhlukahlukene kanye nobukhulu obuhlukahlukene kwamabhodi emishini yokugaya ibhola, kanye nokuthuthukisa izinga lokunyakaza okungahlelekile kwamabhola nezinto zokwakha. Zonke izinto zigaywa ngaphakathi kwamabhodi emishini ngaphandle kwe-engeli efile, okwenza izinto zokugaya zifane futhi zibe zinhle kakhulu. Lolu hlobo lomshini wokugaya ibhola luxazulula izinkinga ezivamile njengokucwila phansi kwembiza nokunamathela odongeni lwembiza.
Umshini wokugaya ibhola weplanethi we-QXQM unamatangi okugaya amabhola amane afakwe kudiski eyodwa. Lapho idiski yokujika ijikeleza, amabhodwe okugaya ajikeleza ku-axis yawo futhi enze ukujikeleza okungu-360 degrees. Futhi amabhola asemathangini agaya futhi axube amasampula ngokunyakaza kwesivinini esikhulu. Umkhiqizo ungaphula futhi uhlanganise imikhiqizo ehlukahlukene yezinto ezahlukene kanye nobuningi ngezindlela ezomile noma ezimanzi. Ubuningi obuncane bamasampula omhlaba bungaba buncane njengemitha engu-0.1 micron. Isetshenziswa kabanzi emikhakheni ye-Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection, njll.
Ukusebenza Isimiso
I-QXQM series planetary ball mill inamathangi amane okugaya amabhola afakwe kwidiski eyodwa. Lapho i-turn disc ijikeleza, amabhodwe okugaya ajikeleza ku-axis yawo futhi enze ukujikeleza okungu-360 degrees. Futhi amabhola asemathangini agaya futhi axube amasampula ngokunyakaza kwesivinini esikhulu. Umkhiqizo ungaphula futhi uxube imikhiqizo ehlukahlukene yezinto ezahlukene kanye nobuningi ngezindlela ezomile noma ezimanzi. Ubuningi obuncane bamasampula omhlaba bungaba buncane njengemitha engu-0.1 micron. Isetshenziswa kabanzi emikhakheni ye-Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection njll. I-QXQM series planetary ball mill inamathangi amane okugaya amabhola afakwe kwidiski eyodwa. Lapho i-turn disc ijikeleza, amabhodwe okugaya ajikeleza ku-axis yawo futhi enze ukujikeleza okungu-360 degrees. Futhi amabhola asemathangini agaya futhi axube amasampula ngokunyakaza kwesivinini esikhulu. Umkhiqizo ungaphula futhi uxube imikhiqizo ehlukahlukene yezinto ezahlukene kanye nobuningi ngezindlela ezomile noma ezimanzi. Ubuningi obuncane bamasampula omhlaba bungaba buncane njengemitha engu-0.1 micron. Isetshenziswa kabanzi emikhakheni ye-Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection njll.
Isici/Inzuzo
Izici ze-Tencan Laboratory Full-directional Planetary Ball Mill
1. Umshini wenza ukunyakaza kwamaplanethi okungama-degree angu-360 ngaphandle kwekhoneni eliqinile, ngakho-ke impuphu yomhlabathi incane kakhulu futhi ilingana kakhulu
2. Ukudluliswa kwegiya kuqinisekisa ukugcina ukuvumelana kanye nokuphindeka kokuhlolwa.
3. Ungathola amasampula amane ahlukene empuphu ngesikhathi esisodwa.
4. Imvamisa eguquguqukayo ilawulwa futhi uhlelo lulawulwa.
5. Ixazulula izinkinga zezinto ezicwila futhi zinamathela ebhodweni.
Izinzuzo ze-Tencan Full-directional Planetary Ball Mill

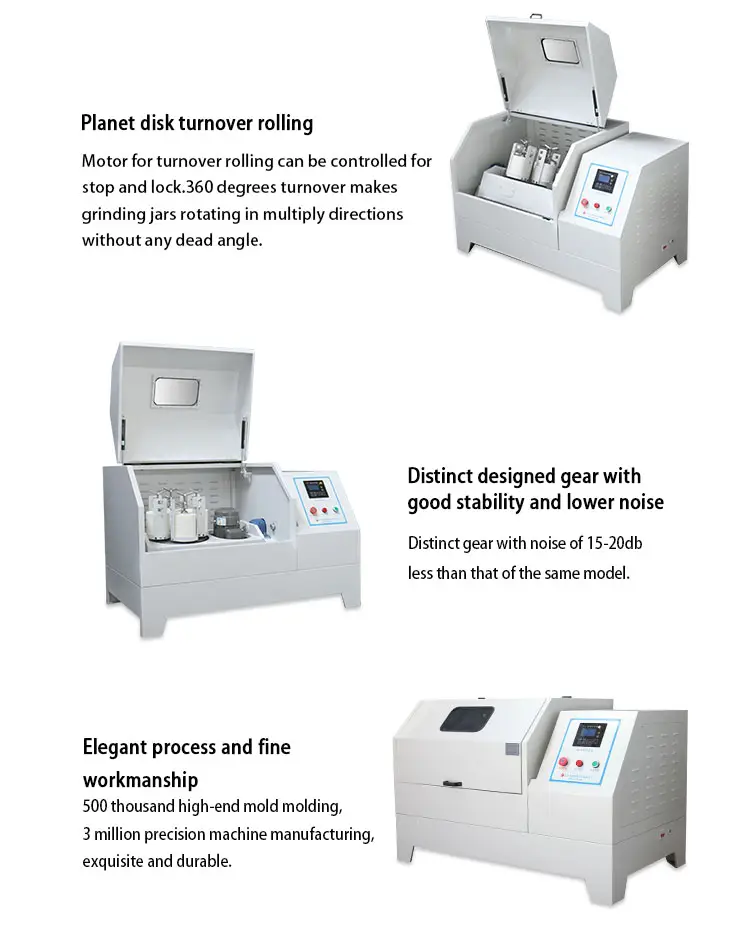

Umklamo obukeka kahle kanye nomodeli wezimboni wegobolondo le-ball mill ngokukhiqiza okuthambile kwenza umshini ube muhle futhi ucocekile. Ubuchwepheshe bokucubungula i-CNC buyasetshenziswa ekwenzeni izingxenye ezengeziwe zomshini, futhi amagiya anembile anezinto ezikhethekile akhethwa amagiya okudlulisa ukuqinisekisa ukusebenza okubushelelezi, okuphephile nokuphansi komsindo we-ball mill ngesivinini esikhulu. Imoto ephendukayo inomsebenzi wokukhiya amabhuleki, okungavimba ukujika nganoma iyiphi i-engeli, iphephile futhi ithembekile. I-ball mill kulula ukuyisebenzisa ngenxa yesikrini sokuthinta se-micro-computer njengoba isikhombimsebenzisi sayo silula futhi sinembile. Lolu hlobo lwe-ball mill lungalawula phambili nangemuva, futhi lunemisebenzi yememori yesikhathi kanye nokuvala ugesi.
Uhla olubanzi lwempuphu lungagaywa yi-planetary ball mill yethu ngamabhodlela namabhola ahlukene okugaya, njengempuphu ye-ore, impuphu ye-fluorescent, impuphu yengilazi, impuphu ye-pigment njalo njalo. Okulandelayo amanye amasampula empuphu ongawasebenzisa ukuze uwabhekisele kuwo.
Ishidi le-data
Idatha Yobuchwepheshe ye-Tencan Laboratory Full-directional Planetary Ball Mill
| Izici Zobuchwepheshe | |
| Imodi-Drive | I-Gear Drive kanye ne-Belt Drive |
| Imodeli Yokusebenza | Kungasetshenziswa izimbiza ezimbili noma ezine zokugaya ekugayeni ngakunye |
| Ubukhulu beMax | Ngaphansi kwe-1/3 yevolumu yembiza ngayinye yokugaya |
| Usayizi Wokudla Wezinto Zokugaya | Izinto ezithambile nezicwebezelayo ≤ 100mm Izinto eziqinile ≤ 3mm |
| Usayizi Wokugcina Wezinhlayiyana Zokukhipha | Usayizi wezinhlayiya ezincane kakhulu ungafinyelela ku-0.1μm |
| Isilinganiso Sesivinini Esijikelezayo | 1/2 |
| Isikhathi Esiphezulu Sokusebenza Esiqhubekayo | 72 Amahora |
| Imodi Yokulawula Isivinini | I-Frequency Inverter |
| Izinto Ezitholakalayo Zezimbiza Zokugaya | I-Tungsten carbide, i-Agate, i-304 Insimbi engagqwali, i-316L Insimbi engagqwali, i-Corundum, i-Zirconia, i-Nylon, i-PU, i-Alumina ceramic, i-PTFE, njll. |
| Ithebula lepharamitha (I) weLebhu Iqondisa konke I-Planetary Ball Mill | ||||
| Model No. | Imininingwane | Osayizi Abangafanelana | Izikhundla Zokusebenza | Osayizi Abangafanelana |
| Izimbiza Zokugaya | amajagi okugaya i-vacuum | |||
| I-QXQM-0.4 | 0.4L | 50ml, 100ml | 4 | 50ml |
| QI-XQM-1 | 1L | I-50ml-250ml | 4 | 50ml. 100ml |
| QI-XQM-2 | 2L | I-50ml-500ml | 4 | I-50ml, 100ml, 250ml |
| QI-XQM-4 | 4L | I-250ml-1000ml | 4 | I-50ml-500ml |
| QI-XQM-6 | 6L | I-500ml-1500ml | 4 | I-50ml-1000ml |
| QI-XQM-8 | 8L | I-1L-2L | 4 | I-500ml-1500ml |
| QI-XQM-10 | 10L | I-1L-2.5L | 4 | I-1L-2L |
| QI-XQM-12 | 12L | I-1L-3L | 4 | I-1L-2L |
| QI-XQM-16 | 16L | I-2L-4L | 4 | I-1L-2L |
| Ithebula lepharamitha yezobuchwepheshe (II) yeLebhu Iqondisa konke I-Planetary Ball Mill | |||||||
| imodeli Cha | Power (KW) | voltage | Revolution Speed (rpm) | Rotation Speed (rpm) | Ubude uhlelo lwezikhathi (imizuzu) | Isikhathi Sokusebenza Esishintshanayo Phambili & Ukujikeleza Kokubuyela Emuva (imizuzu) | Umsindo≤db |
| I-QXQM-0.4 | 0.75 | 220V-50Hz | 35-335 | 90-870 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-1 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-2 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-4 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-6 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-8 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-10 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-12 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-16 | 3 | 380V-50Hz | 30-255 | 60-510 | 1-9999 | 1-999 | I-60 ± 5 |
| Ithebula lepharamitha yezobuchwepheshe (II)I) weLaboratory Full-directional Planetary Ball Mill | ||||
| Model No. | Power | Imodi yokulawula isivinini | isisindo Net | Ubukhulu |
| (KW) | (kg3) | (Mm) | ||
| I-QXQM-0.4 | 0,75 | Imvamisa Control | 136 | 900 * 570 * 670 |
| I-QXQM-1 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-2 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-4 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-6 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-8 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-10 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-12 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-16 | 3 | Imvamisa Control | 550 | 1530 * 940 * 1100 |
Isesekeli Esingasetshenziswa Kalula
Idatha Yobuchwepheshe ye-Tencan Laboratory Full-directional Planetary Ball Mill
| Izici Zobuchwepheshe | |
| Imodi-Drive | I-Gear Drive kanye ne-Belt Drive |
| Imodeli Yokusebenza | Kungasetshenziswa izimbiza ezimbili noma ezine zokugaya ekugayeni ngakunye |
| Ubukhulu beMax | Ngaphansi kwe-1/3 yevolumu yembiza ngayinye yokugaya |
| Usayizi Wokudla Wezinto Zokugaya | Izinto ezithambile nezicwebezelayo ≤ 100mm Izinto eziqinile ≤ 3mm |
| Usayizi Wokugcina Wezinhlayiyana Zokukhipha | Usayizi wezinhlayiya ezincane kakhulu ungafinyelela ku-0.1μm |
| Isilinganiso Sesivinini Esijikelezayo | 1/2 |
| Isikhathi Esiphezulu Sokusebenza Esiqhubekayo | 72 Amahora |
| Imodi Yokulawula Isivinini | I-Frequency Inverter |
| Izinto Ezitholakalayo Zezimbiza Zokugaya | I-Tungsten carbide, i-Agate, i-304 Insimbi engagqwali, i-316L Insimbi engagqwali, i-Corundum, i-Zirconia, i-Nylon, i-PU, i-Alumina ceramic, i-PTFE, njll. |
| Ithebula lepharamitha (I) weLebhu Iqondisa konke I-Planetary Ball Mill | ||||
| Model No. | Imininingwane | Osayizi Abangafanelana | Izikhundla Zokusebenza | Osayizi Abangafanelana |
| Izimbiza Zokugaya | amajagi okugaya i-vacuum | |||
| I-QXQM-0.4 | 0.4L | 50ml, 100ml | 4 | 50ml |
| QI-XQM-1 | 1L | I-50ml-250ml | 4 | 50ml. 100ml |
| QI-XQM-2 | 2L | I-50ml-500ml | 4 | I-50ml, 100ml, 250ml |
| QI-XQM-4 | 4L | I-250ml-1000ml | 4 | I-50ml-500ml |
| QI-XQM-6 | 6L | I-500ml-1500ml | 4 | I-50ml-1000ml |
| QI-XQM-8 | 8L | I-1L-2L | 4 | I-500ml-1500ml |
| QI-XQM-10 | 10L | I-1L-2.5L | 4 | I-1L-2L |
| QI-XQM-12 | 12L | I-1L-3L | 4 | I-1L-2L |
| QI-XQM-16 | 16L | I-2L-4L | 4 | I-1L-2L |
| Ithebula lepharamitha yezobuchwepheshe (II) yeLebhu Iqondisa konke I-Planetary Ball Mill | |||||||
| imodeli Cha | Power (KW) | voltage | Revolution Speed (rpm) | Rotation Speed (rpm) | Ubude uhlelo lwezikhathi (imizuzu) | Isikhathi Sokusebenza Esishintshanayo Phambili & Ukujikeleza Kokubuyela Emuva (imizuzu) | Umsindo≤db |
| I-QXQM-0.4 | 0.75 | 220V-50Hz | 35-335 | 90-870 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-1 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-2 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-4 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-6 | 0.75 | 220V-50Hz | 35-335 | 70-670 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-8 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-10 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-12 | 1.5 | 220V-50Hz | 35-290 | 70-580 | 1-9999 | 1-999 | I-60 ± 5 |
| I-QXQM-16 | 3 | 380V-50Hz | 30-255 | 60-510 | 1-9999 | 1-999 | I-60 ± 5 |
| Ithebula lepharamitha yezobuchwepheshe (II)I) weLaboratory Full-directional Planetary Ball Mill | ||||
| Model No. | Power | Imodi yokulawula isivinini | isisindo Net | Ubukhulu |
| (KW) | (kg3) | (Mm) | ||
| I-QXQM-0.4 | 0,75 | Imvamisa Control | 136 | 900 * 570 * 670 |
| I-QXQM-1 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-2 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-4 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-6 | 0.75 | Imvamisa Control | 317 | 1330 * 770 * 850 |
| I-QXQM-8 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-10 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-12 | 1.5 | Imvamisa Control | 420 | 1360 * 850 * 950 |
| I-QXQM-16 | 3 | Imvamisa Control | 550 | 1530 * 940 * 1100 |
