Umshini Wokugaya Amabhola Okukhanya Okwenza Uqine
Isicelo
Isetshenziswa kabanzi emikhakheni ye-zirconia silicate, i-zirconia, i-alumina oxide, i-ceramic, amakhemikhali, izinto ze-elekthronikhi, izinto ezisebenza ngogesi, ukwenza iphepha, ukupenda, amaminerali angewona awensimbi, izinto ezintsha, ukumboza, i-graphite, i-calcium carbonate, imithi, njalo njalo.
Ividiyo
Uhlolojikelele
I-Stirred ball mill ikakhulukazi iqukethe imbiza ene-inner grinding media, i-stirging device kanye namanye amadivayisi asizayo njenge-recycling device, i-cooling device, i-timing device, i-speed adjusting controller, njll. Izinzuzo zayo zokusebenza kahle kakhulu kanye ne-fine granularity zihlangabezana nezidingo zobuchwepheshe zezinqubo ezahlukahlukene. I-Stirred ball mill uhlobo lwemishini efanelekile esetshenziselwa ukuchoboza izinto ezintsha kanye nokupenda ucwaningo lwamanyuvesi, izikhungo zocwaningo kanye namabhizinisi ngenxa yezici zayo ezincane, amandla aphansi kanye nentengo ephansi.
Ukusebenza Isimiso
Uma umshini ujikeleza ngesivinini esiphezulu ngaphansi kokushayela kwe-axis eyinhloko futhi imidiya yokugaya ihamba ngokungajwayelekile ngesikhathi esifanayo, izinto zokugaya zingachotshozwa, zigaywe bese zisikwa zibe yimpuphu encane ye-granularity. Usayizi, ukuma kanye nesilinganiso sokufanisa semidiya yokugaya kungathinta umphumela wokugaya. Ngokuvamile, uma imidiya yokugaya inkulu, kulapho i-powder yokugaya iba ncane khona. Isilinganiso sokufanisa esifanele semidiya yokugaya kanye nokulungiswa okufanele kwesivinini sokujikeleza kungenza umphumela wokugaya ube ngcono.

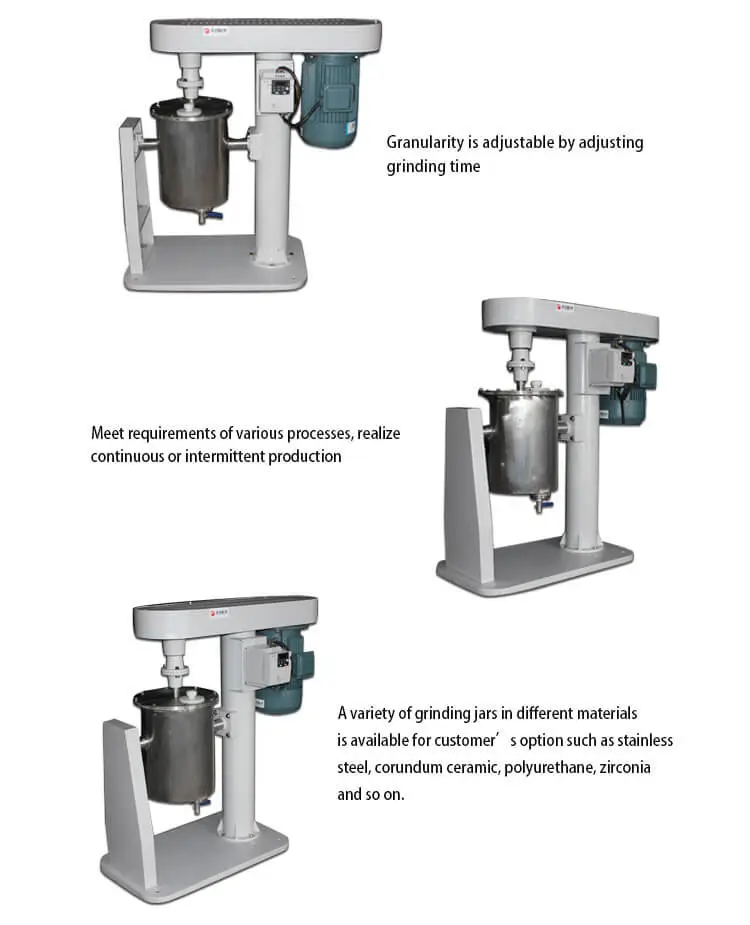

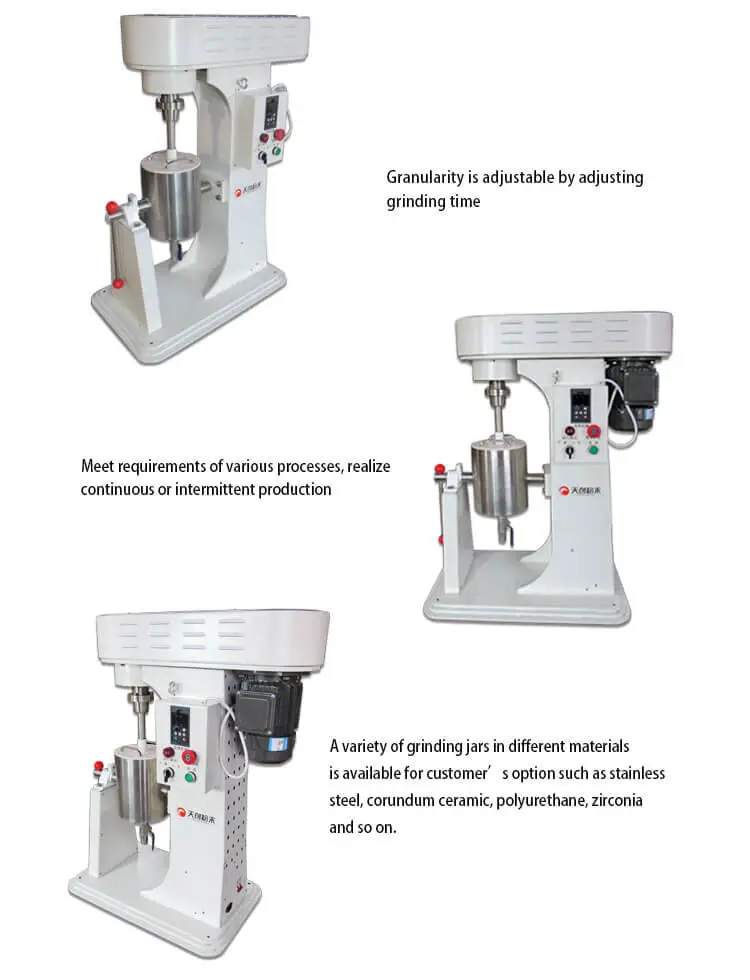

Isici/Inzuzo
1. Izinga eliphezulu lokusetshenziswa kwamandla, ukonga amandla
2. Ubuncane bungalungiseka ngokulungisa isikhathi sokugaya
3. Ukudlidliza okuncane, umsindo ophansi
4. Isakhiwo esilula, ukusebenza okulula
5. Ukuhlangabezana nezidingo zezinqubo ezahlukahlukene, ukufeza ukukhiqizwa okuqhubekayo noma okungahleliwe
6. Imbiza enejakethi, kulula ukulawula izinga lokushisa lokugaya
7. Isevisi eyenziwe ngokwezifiso iyatholakala. Imisebenzi ekhethekile efana nesikhathi, ukulungisa isivinini, ukuvuselela, ukulawula izinga lokushisa ingakhethwa futhi i-odwe.
8. Izinhlobo ezahlukene zezimbiza zokugaya ezenziwe ngezinto ezahlukene ziyatholakala ukuze amakhasimende akhethe kuzo njengensimbi engagqwali, i-corundum ceramic, i-polyurethane, i-zirconia njalo njalo.

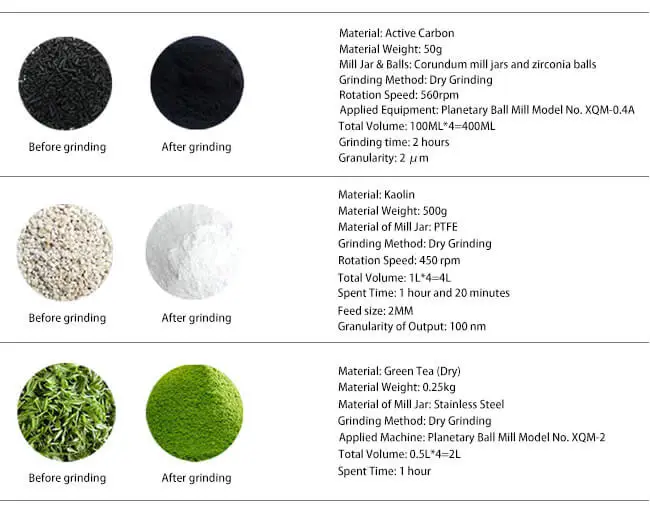

Amacala Okusetshenziswa Kwe-Planetary Ball Mill
Amacala Okusetshenziswa Kwe-Planetary Ball Mill
Ishidi le-data
| Amapharamitha Ayinhloko e-Stirred Ball Mill | |||||||||
| Model CHA. | Jikela Speed (rpm) | ivolumu (L) | Layisha Umthamo (L) | Ukunikezwa kwamandla kagesi (KW/V) | Iyatholakala Izimbiza | Okuphakelayo Usayizi (Mm) | Okukhiphayo Ubumbudumbudu (μm) | Imodi yokulawula isivinini | Isigaba |
| I-JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | Insimbi engagqwali Inayiloni I-Alumina Ceramic PU I-Zirconia Agate PTFE | ≤5 | ≤1μm | imvamisa ijubane umlungisi | Laboratory isikali |
| I-JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | ≤1μm | |||
| I-JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | ≤1μm | |||
| I-JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | ≤1μm | imvamisa isilungisi sejubane or Ijubane elilungisiwe kulungiselelwa Okomthengi option | Uhlobo Oluncane | |
| I-JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | ≤1μm | |||
| I-JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | ≤1μm | |||
| I-JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | ≤1μm | Uhlobo Lokukhanya | ||
| I-JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | I-Carbon Steel Insimbi engagqwali I-liner ye-nylon I-PU liner I-Alumina Ceramic Liner I-PTFE liner | ≤10 | ≤1μm | ||
| I-JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | ≤1μm | |||
| I-JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | ≤1μm | Industrial Uhlobo | ||
| I-JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | ≤1μm | |||
| I-JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | ≤1μm | |||
| I-JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | ≤1μm | |||
| I-JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | ≤1μm | |||
Isesekeli Esingasetshenziswa Kalula
| Amapharamitha Ayinhloko e-Stirred Ball Mill | |||||||||
| Model CHA. | Jikela Speed (rpm) | ivolumu (L) | Layisha Umthamo (L) | Ukunikezwa kwamandla kagesi (KW/V) | Iyatholakala Izimbiza | Okuphakelayo Usayizi (Mm) | Okukhiphayo Ubumbudumbudu (μm) | Imodi yokulawula isivinini | Isigaba |
| I-JM-1L | 50-1400 | 1 | 0.35 | 0.37KW/220V | Insimbi engagqwali Inayiloni I-Alumina Ceramic PU I-Zirconia Agate PTFE | ≤5 | ≤1μm | imvamisa ijubane umlungisi | Laboratory isikali |
| I-JM-2L | 50-1400 | 2 | 0.7 | 0.37KW/220V | ≤5 | ≤1μm | |||
| I-JM-3L | 50-1400 | 3 | 1.05 | 0.37KW/220V | ≤5 | ≤1μm | |||
| I-JM-5L | 60-600 | 5 | 1.75 | 0.75KW/220V | ≤5 | ≤1μm | imvamisa isilungisi sejubane or Ijubane elilungisiwe kulungiselelwa Okomthengi option | Uhlobo Oluncane | |
| I-JM-10L | 60-560 | 10 | 3.5 | 1.5KW/220V | ≤10 | ≤1μm | |||
| I-JM-15L | 60-380 | 15 | 5.25 | 2.2KW/380V | ≤10 | ≤1μm | |||
| I-JM-20L | 60-380 | 20 | 7 | 2.2KW/380V | ≤10 | ≤1μm | Uhlobo Lokukhanya | ||
| I-JM-30L | 60-310 | 30 | 10.5 | 3KW/380V | I-Carbon Steel Insimbi engagqwali I-liner ye-nylon I-PU liner I-Alumina Ceramic Liner I-PTFE liner | ≤10 | ≤1μm | ||
| I-JM-50L | 60-140 | 50 | 17.5 | 4KW/380V | ≤10 | ≤1μm | |||
| I-JM-100L | 60-140 | 100 | 35 | 7.5KW/380V | ≤20 | ≤1μm | Industrial Uhlobo | ||
| I-JM-200L | 60-140 | 200 | 70 | 11KW/380V | ≤20 | ≤1μm | |||
| I-JM-300L | 60-110 | 300 | 100 | 15KW/380V | ≤20 | ≤1μm | |||
| I-JM-500L | 60-90 | 500 | 170 | 18.5KW/380V | ≤20 | ≤1μm | |||
| I-JM-600L | 60-90 | 600 | 210 | 22KW/380V | ≤20 | ≤1μm | |||
