Ibhokisi Legilavu Le-Acrylic
Isicelo
Ibhokisi legilavu le-Acrylic lisetshenziswa kabanzi ku-biochemistry, metallurgy, electron, chemical, geology, minerals, medicine, electronic materials, magnetic materials, battery tools, battery plantation, food vacuum packaging, battery materials, njalo njalo.
Uhlolojikelele
Ibhokisi legilavu le-Acrylic lisetshenziswa kabanzi ku-biochemistry, metallurgy, electron, chemical, geology, minerals, medicine, electronic materials, magnetic materials, battery tools, battery plantation, food vacuum packaging, battery materials, njalo njalo.
Ubukhulu obungakhethwa be-Acrylic Glass: 10mm, 15mm, 30mm, 40mm
Amamodeli Ongawakhetha: A、B、C、D.
Inombolo Yekhodi. (Isifinyezo sebhokisi legilavu elibonakalayo)
Ukusebenza Isimiso
Isingeniso esifushane seTencan Acrylic Glove Box
Ibhokisi lamagilavu le-Acrylic luhlobo lwebhokisi lamagilavu elenziwe ngezinto eziphilayo futhi libizwa nangokuthi ibhokisi lokusebenza legesi elingenayo igesi. Ngesikhathi sokuhlola kwesayensi, ezinye izinto zikwazi ukungcoliswa futhi zifakwe umswakama kalula. Lokho kwenza ukusabela kwezinto zokuhlola kanye nesampula kube nzima kakhulu futhi kuthinta inqubo yokuhlola kanye nomphumela wokuhlola. Ibhokisi lamagilavu le-Acrylic likusiza ukuxazulula zonke lezo zinkinga ngempumelelo. Amasampula ahlolwe angafakwa futhi akhishwe ngokuphephile yidivayisi futhi ungasebenza ngokukhululeka ngaphakathi kwebhokisi lamagilavu, wenze ukusabela nokuhlola ngaphansi kwezimo ezingenamanzi kanye nezingangenisi umoya, kuqinisekisa ukusebenza okuvamile kokuhlolwa kwesayensi.
Isici/Inzuzo
1. Isakhiwo esilula, ukusebenza okulula;
2. Ngaphansi kwezimo ezijwayelekile, inezici zesimo esizinzile, esobala kakhulu, ukumelana namakhemikhali kanye nokumelana nokushintsha kwesimo sezulu;
3. Ibhokisi layo lifakwe isokhethi kagesi elinezimbobo, elilungele ukuhlolwa kwesayensi;
4. Isebenza kahle ekuvaleni, futhi ivikela futhi imunce imisebe ye-Alpha (α) kanye nemisebe ye-beta (β) enamandla aphansi ekhishwa yizinto ezinemisebe ukuvikela izicubu zomzimba womuntu ezivezwe emonakalweni wemisebe. Izuzisa abantu ukwenza eminye imisebenzi yokuhlukanisa evaliwe ngaphakathi kwebhokisi njengomsebenzi wokuhlola wamayunithi ocwaningo lwesayensi wezinto ezinemisebe enamandla aphansi, ukugonywa kwamagciwane okusebenza okungcolile kanye nokuhlaziywa kwekhwalithi nokwenani kwamakhemikhali.
Ishidi le-data
| MODEL | ISIKHUMBUZO |
| A | Imodeli A ikhethekile ekuvikelweni kwemisebe, ukusebenza kokuhlukaniswa noma ukusebenza kokulawula uthuli. Ayikwazi ukuhlanzwa nge-vacuum, futhi ibhokisi elibonakala ngokuphelele lilungele ukubonwa. |
| B | Imodeli B ingahlanzwa kancane ibe yi-0 MPa, bese ungashintsha ngegesi engasebenzi ukuze ugcine indawo yegesi engasebenzi. Le modeli ifanelekela ukusebenza kokuhlola kwezinto ezinokuzwela okuphansi emanzini kanye nokuqukethwe komoya-mpilo. Ibhokisi lokushintsha alinasidingo. |
| C | Imodeli C ingafakwa i-vacuum ngaphakathi kwebhokisi, ibhokisi lokushintsha lingafakwa i-vacuum ngezinga eliphezulu le-vacuum (-0.1MPa), bese ungashintsha umoya ngegesi engasebenzi ukuze uthole indawo ehlanzekile yegesi engasebenzi. |
| D | Imodeli D ingafakwa i-vacuum ngaphakathi kwebhokisi legilavu le-acrylic ngesistimu yokuhlanza kanye nebhokisi lokushintsha libe yizinga eliphezulu le-vacuum (-0.1MPa). Ungathola indawo yegesi ehlanzekile engasebenzi uma ushintsha umoya ngegesi engasebenzi. Uhlelo lokuhlanza lungenza okuqukethwe kwamanzi kanye nokuqukethwe komoya-mpilo kube ngaphansi kwe-1PPM okufanelekela ukusebenza kokuhlola kwezinto ezinokuzwela okuphezulu emanzini kanye nomoya-mpilo. (Ngokuvamile ngaphansi kwezimo zokuqukethwe kwamanzi ≤1 ppm, okuqukethwe komoya-mpilo ≤1 ppm) |

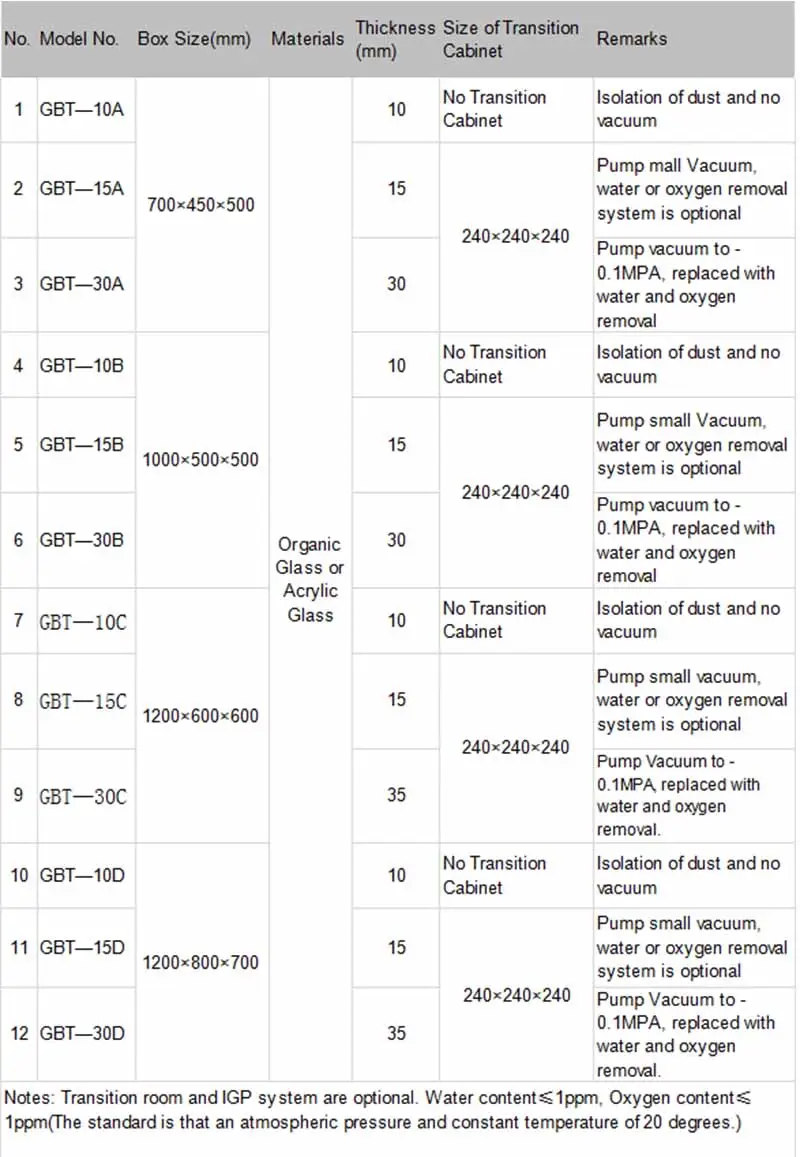

| Amapharamitha Obuchwepheshe e-Acrylic Glove Box | |||||||
| Cha | Model No. | Ibhokisi Size | Material | Ubukhulu | Usayizi Webhokisi Lokuguquka (Okokuzithandela) | Usayizi Womnyango Ohlangothini Lwesobunxele (Okokuzithandela) | Amazwi |
| 1 | I-GBT-10A | 700 * 450 * 500mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 245 * 325mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 2 | I-GBT-15A | 700 * 450 * 500mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 245 * 325mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 3 | I-GBT-30A | 700 * 450 * 500mm | Impahla ye-PMMA | 30mm | 240 * 240 * 240mm | 252 * 330mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 4 | I-GBT-10B | 1000 * 500 * 500mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 260 * 340mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 5 | I-GBT-15B | 1000 * 500 * 500mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 260 * 340mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 6 | I-GBT-30B | 1000 * 500 * 500mm | Impahla ye-PMMA | 30mm | 240 * 240 * 240mm | 260 * 340mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 7 | I-GBT-10C | 1200 * 600 * 600mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 358 * 422mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 8 | I-GBT-15C | 1200 * 600 * 600mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 358 * 422mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 9 | I-GBT-40C | 1200 * 600 * 600mm | Impahla ye-PMMA | 40mm | 240 * 240 * 240mm | 350 * 450mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 10 | I-GBT-10D | 1200 * 800 * 700mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 528 * 488mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 11 | I-GBT-15D | 1200 * 800 * 700mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 528 * 488mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 12 | I-GBT-40D | 1200 * 800 * 700mm | Impahla ye-PMMA | 40mm | 240 * 240 * 240mm | 515 * 525mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
Amapharamitha ebhokisi legilavu elibonakalayo
Isesekeli Esingasetshenziswa Kalula
| MODEL | ISIKHUMBUZO |
| A | Imodeli A ikhethekile ekuvikelweni kwemisebe, ukusebenza kokuhlukaniswa noma ukusebenza kokulawula uthuli. Ayikwazi ukuhlanzwa nge-vacuum, futhi ibhokisi elibonakala ngokuphelele lilungele ukubonwa. |
| B | Imodeli B ingahlanzwa kancane ibe yi-0 MPa, bese ungashintsha ngegesi engasebenzi ukuze ugcine indawo yegesi engasebenzi. Le modeli ifanelekela ukusebenza kokuhlola kwezinto ezinokuzwela okuphansi emanzini kanye nokuqukethwe komoya-mpilo. Ibhokisi lokushintsha alinasidingo. |
| C | Imodeli C ingafakwa i-vacuum ngaphakathi kwebhokisi, ibhokisi lokushintsha lingafakwa i-vacuum ngezinga eliphezulu le-vacuum (-0.1MPa), bese ungashintsha umoya ngegesi engasebenzi ukuze uthole indawo ehlanzekile yegesi engasebenzi. |
| D | Imodeli D ingafakwa i-vacuum ngaphakathi kwebhokisi legilavu le-acrylic ngesistimu yokuhlanza kanye nebhokisi lokushintsha libe yizinga eliphezulu le-vacuum (-0.1MPa). Ungathola indawo yegesi ehlanzekile engasebenzi uma ushintsha umoya ngegesi engasebenzi. Uhlelo lokuhlanza lungenza okuqukethwe kwamanzi kanye nokuqukethwe komoya-mpilo kube ngaphansi kwe-1PPM okufanelekela ukusebenza kokuhlola kwezinto ezinokuzwela okuphezulu emanzini kanye nomoya-mpilo. (Ngokuvamile ngaphansi kwezimo zokuqukethwe kwamanzi ≤1 ppm, okuqukethwe komoya-mpilo ≤1 ppm) |
| Amapharamitha Obuchwepheshe e-Acrylic Glove Box | |||||||
| Cha | Model No. | Ibhokisi Size | Material | Ubukhulu | Usayizi Webhokisi Lokuguquka (Okokuzithandela) | Usayizi Womnyango Ohlangothini Lwesobunxele (Okokuzithandela) | Amazwi |
| 1 | I-GBT-10A | 700 * 450 * 500mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 245 * 325mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 2 | I-GBT-15A | 700 * 450 * 500mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 245 * 325mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 3 | I-GBT-30A | 700 * 450 * 500mm | Impahla ye-PMMA | 30mm | 240 * 240 * 240mm | 252 * 330mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 4 | I-GBT-10B | 1000 * 500 * 500mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 260 * 340mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 5 | I-GBT-15B | 1000 * 500 * 500mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 260 * 340mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 6 | I-GBT-30B | 1000 * 500 * 500mm | Impahla ye-PMMA | 30mm | 240 * 240 * 240mm | 260 * 340mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 7 | I-GBT-10C | 1200 * 600 * 600mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 358 * 422mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 8 | I-GBT-15C | 1200 * 600 * 600mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 358 * 422mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 9 | I-GBT-40C | 1200 * 600 * 600mm | Impahla ye-PMMA | 40mm | 240 * 240 * 240mm | 350 * 450mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
| 10 | I-GBT-10D | 1200 * 800 * 700mm | Impahla ye-PMMA | 10mm | 240 * 240 * 240mm | 528 * 488mm | Ihlukaniswe nothuli, ayikwazi ukuhlanzwa nge-vacuum. |
| 11 | I-GBT-15D | 1200 * 800 * 700mm | Impahla ye-PMMA | 15mm | 240 * 240 * 240mm | 528 * 488mm | Ihlukaniswe nothuli, ihlanzwe kancane. |
| 12 | I-GBT-40D | 1200 * 800 * 700mm | Impahla ye-PMMA | 40mm | 240 * 240 * 240mm | 515 * 525mm | Kufakwe u-vacuum cleaner ku--0.1Mpa |
Amapharamitha ebhokisi legilavu elibonakalayo
